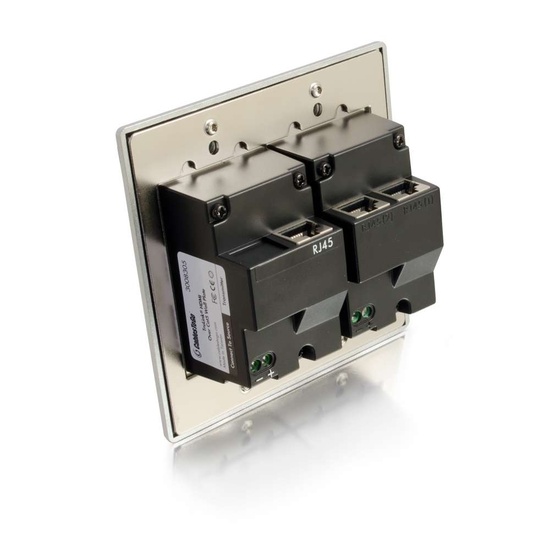

Discontinued - HDMI® HDBaseT + VGA + Stereo Audio + Composite Video + Audio over Cat Extender Double Gang Wall Plate Transmitter - Aluminum
#29231
C2G
Bazaarvoice SAP Hybris Integration Version 2.8.1
The HDMI + VGA + Stereo Audio + Composite Video + Audio over Cat allows for the extension of HDMI video and audio, VGA video, Stereo Audio, Composite Video and Audio signals over three Cat5e, Cat6, or Cat6a cables up to 300ft. HDMI video is supported at up to a 1080p video resolution while VGA is supported at up to a 1920x1200 resolution* and Composite Video is supported at a 480i video resolution. HDMI digital audio is supported through the HDMI port, while the 3.5mm port supports Stereo Audio and the two RCA Audio inputs of the transmitter accept a Stereo Audio input, mix the two channels of audio into a single signal which is sent to this receiver then duplicated so that both channels of audio are sent to the white and to the red RCA output ports on the receiver. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. In addition, this solution utilizes TruChoice™ power, which allows power to be supplied over the Cat cable to both the transmitter and receiver from a single power adapter placed at either the transmitter or the receiver end of the solution. This transmitter requires the use of two separate receivers, one for the HDMI portion and one for the VGA portion. TruPair™ technology and HDBaseT** ensure compatibility with any monitor. Built-in power surge protection and high ground loop immunity ensure high performance signal extension.
View compatible receivers, additional transmitters and kit options on the
View compatible receivers, additional transmitters and kit options on the
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
- Send
- Save as PDF
Features
- Extend HDMI, VGA, Stereo Audio, Composite Video and Audio up to 300ft at a 1920x1200 resolution
- Utilizes three Cat5e, Cat6, or Cat6a cables for extension
- HDBaseT technology supports EDID pass through
- TruPair technology ensures compatibility with any monitor
- TruChoice Power allows for power at transmitter or receiver end

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Specifications
General Info
Product Line | C2G | ||
Color | Aluminum | ||
UPC Number | 757120292319 | ||
Country Of Origin | Taiwan, Province Of China | ||
Application Sector | Commercial | ||
Type | HDBaseT, Transmitter |
Technical Information
Max Distance Support | 300 ft |
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
What Receiver do you use with this?
You would need 2 receivers with this. One for the VGA, 3.5mm, composite video and audio (29382 or 29384). Then a second receiver for HDMI (29269).
Date published: 2017-10-06
