RJ45 to DB9 Female Serial RS232 Modular Adapter - Black
#02943
C2G
RJ45 to DB9 Female Serial RS232 Modular Adapter - Black is rated
out of
5 by
5.
Bazaarvoice SAP Hybris Integration Version 2.8.1
$3.99 $4.99 MSRP USD
Using modular adapters with inexpensive silver satin or flat oval twisted pair wire has become a standard way to run client server applications. Needing to connect dumb terminals on the desktop back to a central patch panel or directly to a MUX via RS-232, many network planners have implemented modular adapters as the most cost-effective way to complete the connections.
Whether used in a wiring closet or throughout the office, color-coded modular adapters lend easy identification and differentiation to your cable plan. By color-coding your connections, you reduce troubleshooting time while taking full advantage of the benefits of this modular adapter approach.

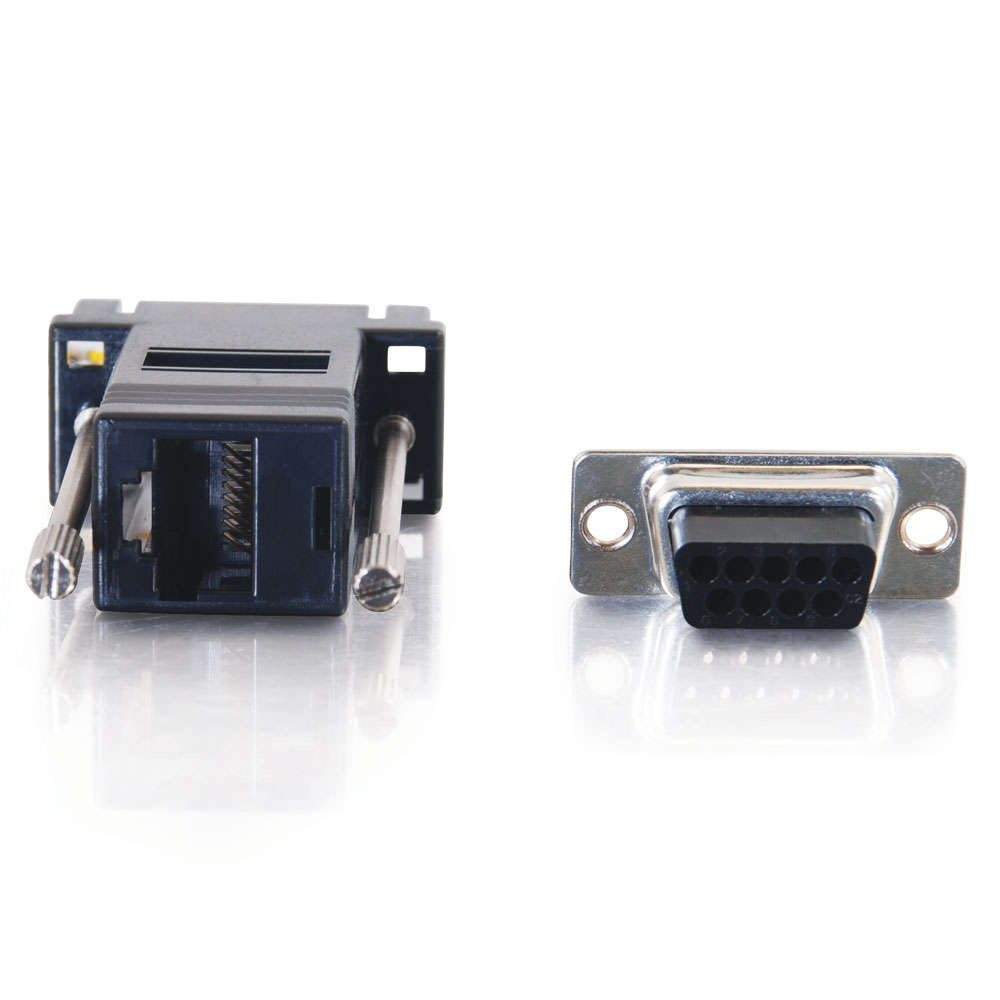

Please Note: Picture shows this adapter before assembly; this modular adapter will need to be assembled so that it is functional. There is not a universal way to assemble them, so please contact us for details. We'll be happy to assemble any adapter (for a nominal labor charge) to fit your application so that they are ready to use upon arrival.
Whether used in a wiring closet or throughout the office, color-coded modular adapters lend easy identification and differentiation to your cable plan. By color-coding your connections, you reduce troubleshooting time while taking full advantage of the benefits of this modular adapter approach.
Please Note: Picture shows this adapter before assembly; this modular adapter will need to be assembled so that it is functional. There is not a universal way to assemble them, so please contact us for details. We'll be happy to assemble any adapter (for a nominal labor charge) to fit your application so that they are ready to use upon arrival.
Connector 1:
(1) RJ-45 Female
Connector 2:
(1) DB9 Female
Quantity
3023 In Stock
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
- Send
- Save as PDF
Features
- Modular adapters for connecting dumb terminals to a central patch panel or MUX via RS-23
- Compatible with inexpensive silver satin or flat oval twisted pair wire.
- Color-coded design for easy identification and differentiation.
- Cost-effective solution for client-server applications.
- Can be assembled to fit specific applications.
- Simplifies the connection of dumb terminals to a central system.
- Provides a cost-effective solution for network planners.
- Versatile usage in different areas of the office.
- Can be customized to fit specific application needs.
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Specifications
General Info
| Product Line | C2G | ||
| Color | Black | ||
| UPC Number | 757120029434 | ||
| Country Of Origin | China | ||
| Features | RS232 | ||
| Application Sector | Commercial, Industrial, Residential | ||
| Warranty Type | Lifetime | ||
| Type | Adapter |
Dimensions
| Product Width US | 1.31 in | ||
| Product Height US | 0.63 in | ||
| Product Length US | 2.36 in |
Technical Information
Resources
Cutsheet
Reviews
Rated 5 out of
5
by
Matt from
fast delivery, easy to assemble
Very easy to assemble with no tools required; clear pin out provided on product web page. Trying to remove an RJ45 connector from the RJ45 side of the adapter is a little difficult as the connection is quite secure and the long screws to secure the adpter to a male DB9 plug get in the way of trying to depress the tab to release the RJ45 connector (I have thick fingers), so it would be nicer if the screws weren't so long or if the RJ45 port/jack was rotated 90 degrees within the adapter to allow easier access to the RJ45 connector tab; however, the connection is strong and has no chance of becoming disconnected by accident, plus I imagine it will become easier to remove the connector with continued use as I get used to it.
Date published: 2014-11-10
Rated 5 out of
5
by
Brett from
Great Product
Worked perfect at converting Cat 5e to serial for machine communication to a PC.
Date published: 2009-12-16
Rated 5 out of
5
by
cjs from
Excellent vendor
LIS interface for Lab equipment; doing it ourselves saved thousands of dollars.
Date published: 2012-08-14
Rated 5 out of
5
by
HIT Manager from
Customer Service was excellent!
Connecting interfaces.
Date published: 2017-02-08
Rated 5 out of
5
by
Cable Dawg from
Great product. Adaptable for application
Have ordered many of these before. Used to program phone systems and computer interfaces.
Date published: 2009-12-05
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
i put the wrong female in the wrong hole is there a way to back them out.
The only way would be to use a Pin extractor Tool.
Date published: 2017-10-05
I want to use this product. Is there a difference with the CAT5 RJ45 plug male end, should that be wired as a stright through. the information i was give for the DB9F to RJ45 is that it follows USOC wiring.
The reason this part is sold unterminated is that many customers need to pin the adapter in different ways. Having this unterminated allows the customer to pin the adapter in the way that they need for their application. Please refer to your equipment requirements as to how to pin the adapter for your application. Please note that the RJ45 end is terminated for T568B.
Date published: 2017-10-05
Do you have the proper pin out for this connector. I am trying to use it for the serial port on the back of computer.
We do have the color code of that adapter which you can find under the Spec tab. The pinout required would depend on the serial device that you are connecting. We would recommend contacting the serial device manufacturer for the proper pinout.
Date published: 2017-10-05
