$823.99 $914.99 MSRP USD

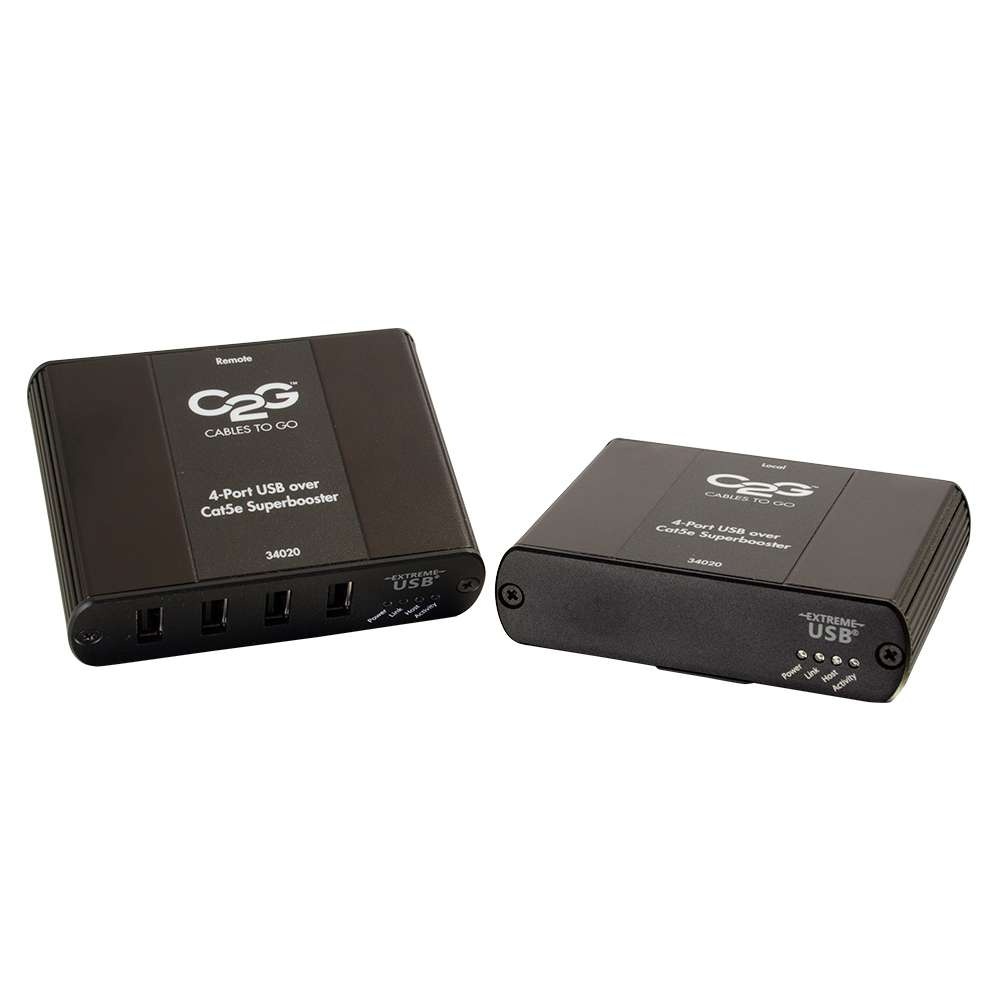

The 4-Port USB 2.0 over Cat5 Extender was designed for systems integrators, installers and other end users seeking an innovatively simple yet powerful solution for extending USB signals beyond their native 16.4 foot length limitation. Specifically for use in commercial environments, the 4-Port USB 2.0 over Cat5 Extender provides connectivity for up to 4 USB devices.
Using true USB 2.0 speed and power, this solution provides increased bandwidth and faster data transfer speeds over standard Cat5/6 cabling at lengths up to 328ft. Integrated UTP power inserter technology provides 500 milliamps of power through the power adapter connected to the receiver. This provides enough power to operate most new USB devices and allows for flexibility in equipment placement. Installation is quick and easy with no software or driver installation required.
Note: If the USB signal is being extended to support a 300 series or 500 series Promethean interactive whiteboard, then we recommend using our product
Using true USB 2.0 speed and power, this solution provides increased bandwidth and faster data transfer speeds over standard Cat5/6 cabling at lengths up to 328ft. Integrated UTP power inserter technology provides 500 milliamps of power through the power adapter connected to the receiver. This provides enough power to operate most new USB devices and allows for flexibility in equipment placement. Installation is quick and easy with no software or driver installation required.
Note: If the USB signal is being extended to support a 300 series or 500 series Promethean interactive whiteboard, then we recommend using our product
Connector 1:
(1) USB-B Female, (1) RJ-45 Female
Connector 2:
(1) USB-A Female, (1) RJ-45 Female
Quantity
115 In Stock
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
- Send
- Save as PDF
Features
- Extends USB 2.0 signals up to 328 feet for 4 USB devices
- Uses a single standard network patch cable
- Supplies 500 milliamps of power at the receiver
- Powered with a single power supply at the receiver
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Specifications
General Info
| Product Line | C2G | ||
| Color | Black | ||
| UPC Number | 757120340201 | ||
| Country Of Origin | Canada | ||
| Application Sector | Commercial, Residential | ||
| Warranty Type | 5-Year | ||
| Type | Active Device, Extender, Kit |
Dimensions
| Product Width US | 3.0 in | ||
| Product Height US | 1.0 in | ||
| Product Length US | 3.9 in |
Listing Agencies / 3rd Party Agencies
| CE Certified | Yes | ||
| FCC Compliant | Yes |
Technical Information
| Max Distance Support | 328 ft | ||
| Jacket Material | PVC (Polyvinyl Chloride) | ||
| Data Transfer Rate | 480 Mbps |
Resources
Cutsheet
Data Sheet
User Guides
White Papers & Tech Bulletins
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
Does this supply 500 milliamps of power to all 4 USB ports?
Yes this will provide the 500milliamps of power to all 4 USB ports
Date published: 2017-10-05
Can these be connected to a LAN? If so, can I send commands to them to in order to route a LOCAL unit to multiple REMOTE units? What does the MODE button do?
These can not work on a LAN. They have to be connected directly to each other.
Date published: 2017-10-05
